FZQ-03 Optical cable Bundle splitter
Description:
The kits provide the most compact, easy-to-install fan-out solution requiring no additional hardware or space than that required for terminating tight-buffered cables. Indoor kits feature a 900 um fan-out assembly that is color coded to match the fiber color scheme. The fan-out assembly is available with 6- or 12-fiber units in lengths of 0.6 m (25 in) or 1.2 m (47 in). These different lengths provide the installer the flexibility needed for a variety of hardware options.
This fanout kit is designed for indoor use only (0~60°C rating). It accepts a 3.0mm optical cable and fan out to 900um diameter furcation tubes which are color-coded to match the fiber color scheme. This buffer tube fan-out kit provides the ultimate solution for those users who want to field-install connectors.
Features:
- Color coded tubing for easy identification (also available in numbered, same color tubes).
- Saves time in the termination process.
- Accepts 900um tight buffer.
- Compatible with most connector styles.
Application:
- The "build up" or "break out" of 900um distribution cables for termination.
- General indoor use where extra protection is needed.
- Computer rooms.
FZQ-03 product ordering information:
| Core No. OD2 | Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths | material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
product list(different types of fittings are different)

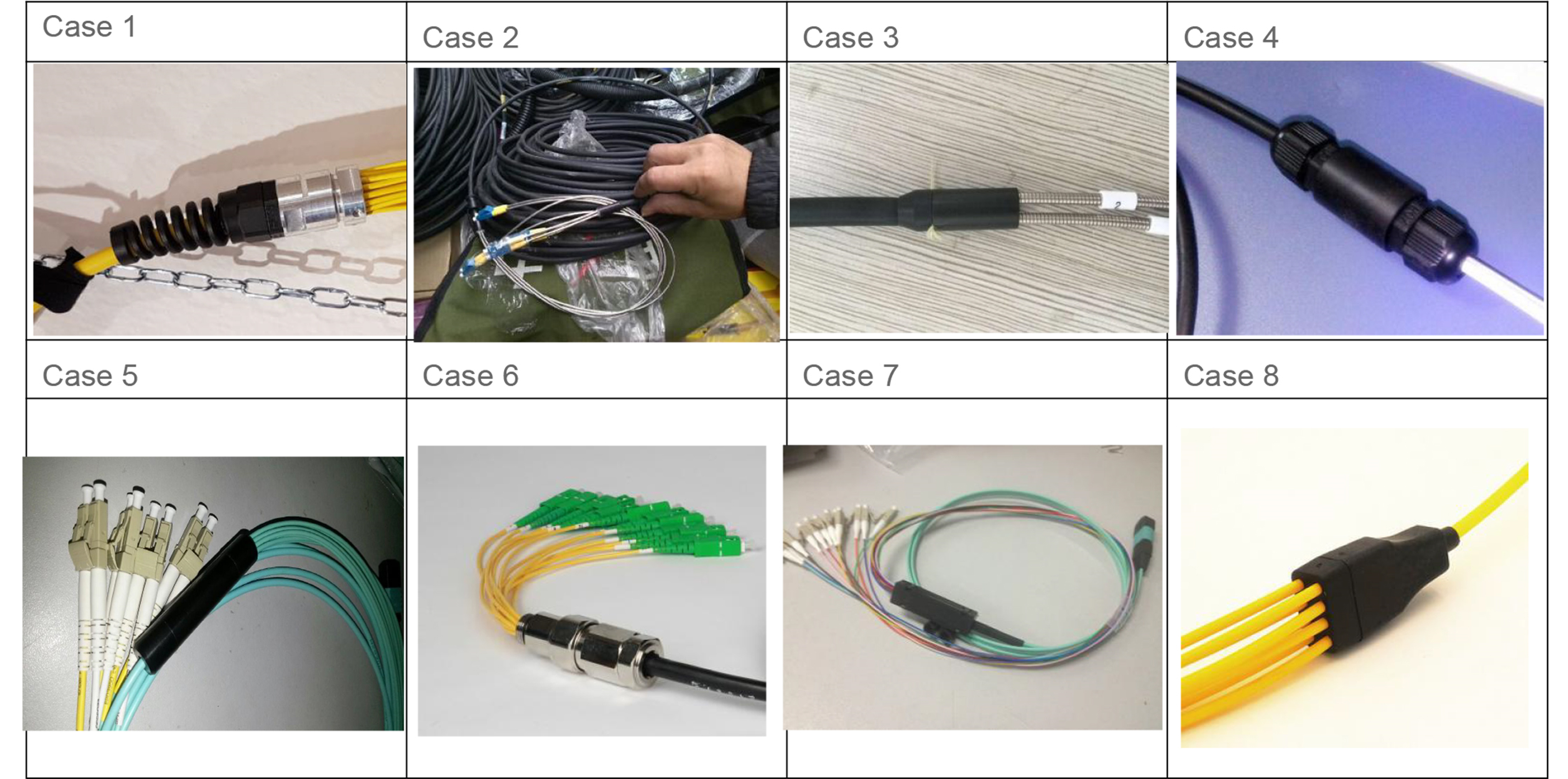

application scenarios
other fan out kit
You can choose according to our specification table.if you don't choose the right product!We can design and customize production according to customer requirements.
Packaging & Shipping
According to the customer's requirement, we can provide 200 pieces/bag, 500 pieces/bag, each part is separately packed, not a whole set/bag
The quotation of this product does not bear transportation costs
We can provide packing according to customer's requirement, quantity, weight and volume.
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
FAQ
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it is 3-6 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below: A: We are factory.
