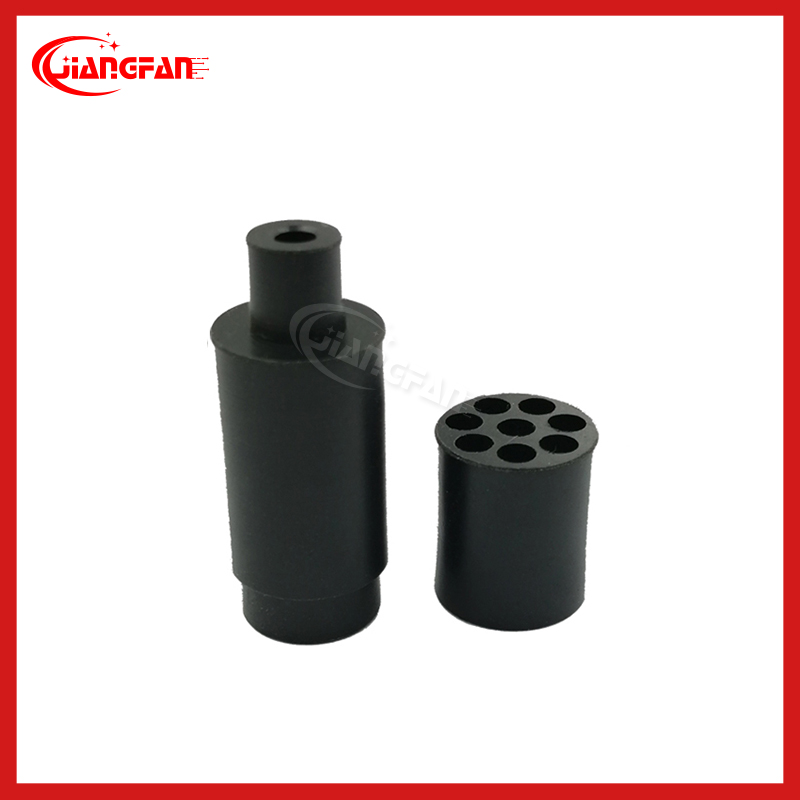

FZQ-03 Optical cable Bundle splitter
Breakout Kits for 3mm Terminations 8core 1 point 8 cores fiber patch cord 0.9-3.0mm
Description:
The kits provide the most compact, easy-to-install fan-out solution requiring no additional hardware or space than that required for terminating tight-buffered cables. Indoor kits feature a 900 um fan-out assembly that is color coded to match the fiber color scheme. The fan-out assembly is available with 6- or 12-fiber units in lengths of 0.6 m (25 in) or 1.2 m (47 in). These different lengths provide the installer the flexibility needed for a variety of hardware options.
This fanout kit is designed for indoor use only (0~60°C rating). It accepts a 3.0mm optical cable and fan out to 900um diameter furcation tubes which are color-coded to match the fiber color scheme. This buffer tube fan-out kit provides the ultimate solution for those users who want to field-install connectors.
Features:
- Color coded tubing for easy identification (also available in numbered, same color tubes).
- Saves time in the termination process.
- Accepts 900um tight buffer.
- Compatible with most connector styles.
Application:
- The "build up" or "break out" of 900um distribution cables for termination.
- General indoor use where extra protection is needed.
- Computer rooms.
FZQ-03 product ordering information:
| Core No. OD2 | Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths | material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
Our products:
Packaging & Shipping
According to the customer's requirement, we can provide 200 pieces/bag, 500 pieces/bag, each part is separately packed, not a whole set/bag
The quotation of this product does not bear transportation costs
We can provide packing according to customer's requirement, quantity, weight and volume.
We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.
company profile:
Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company promotes production efficiency and reduces product costs through continuous technological innovation and new process applications.
The company's high-quality products, reasonable prices, and accurate delivery date to cooperate with customers.
Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise specializing in design, development, production and processing:
The company has processing equipment: plastic injection molding machine, CNC machining center, CNC lathe, sheet metal bending, laser, riveting, polishing machine, ultrasonic, milling machine, wire cutting, punching machine, surface grinder, quality control equipment, projector, micrometer, ring gauge Product control degree, etc. We have rich experience in supporting production, high quality control, high efficiency, and high-quality after-sales service. The company has an enterprise team with professional skills and dedication and 8 years of manufacturing experience. The company has established long-term and stable cooperative relations with many scientific research units, research universities .
Product Tags:
|
|
Terminations 8 Core 1 Point Fiber Optic Fan Out Kit for Patch Cord 0.9-3.0mm Images
|
